High-rise construction, ground engineering and assembly planning
Frankfurt is presented through its skyline and Main river frontage. The finished towers raise questions that their exterior views cannot answer: how loads reach the ground, how an excavation affects nearby assets and how a frame remains stable during erection. I connect that urban setting to documented tower case studies, rather than treating a skyline image as a structural survey.
A practical interface register would connect the ground model, excavation boundary, neighbouring assets and erection plan. I would assign survey baselines and decision points before work starts, so a measured movement or tolerance discrepancy can trigger an agreed response rather than an improvised explanation.
The skyline as an engineering question
As a construction project manager, I am interested in the decisions beneath the architectural image. Height affects structural response, vertical transport, facade movement and the organisation of work. Frankfurt’s towers use different structural and foundation solutions. Their shared urban setting does not justify applying one method to every site; geometry, ground conditions and neighbouring buildings remain project-specific inputs.
Commerzbank: integrating structure and space
Arup describes Commerzbank Tower as a structural system coordinated with a central atrium and elevated gardens. Perimeter Vierendeel framing and composite floor construction help accommodate the spatial arrangement. A Vierendeel frame uses bending action in members and connections rather than the diagonals of a conventional truss. For me, the project illustrates how structural organisation can enable an architectural brief. [1]
Groundwater and the excavation boundary
The original project report describes a secant-pile cut-off around the deep basement excavation, together with measures to protect groundwater conditions and the adjacent tower. These are important construction-stage issues: a new excavation can affect an existing foundation before the new superstructure is complete. I regard the excavation boundary and temporary works as primary engineering packages. [2]
The incomplete structure is a different structure
A partly erected frame may lack completed floor diaphragms and permanent connections. Its temporary stability therefore needs its own design. On a contemporary project, I would coordinate erection tolerances, lifting operations, temporary restraints and the point at which each permanent load path becomes effective. A programme that counts only completed floors misses this distinction.
Operational infrastructure and delivery
A tower also needs integrated vertical circulation, fire strategies, services and facade access. My professional interest is in their interfaces with the structure. A generous opening in a drawing becomes useful only when movement, installation and maintenance have been coordinated. The perspective I take from Frankfurt is to develop the assembly strategy alongside the structural and architectural design.
Case study: Commerzbank Tower
Completed in 1997, the tower is described by Arup as supported by 111 bored piles reaching depths of up to approximately 50 metres. Those figures belong to this project. They are not a foundation specification for other Frankfurt towers. The scheme shows how structural geometry, foundation engineering and the building’s environmental concept were developed together. [1]

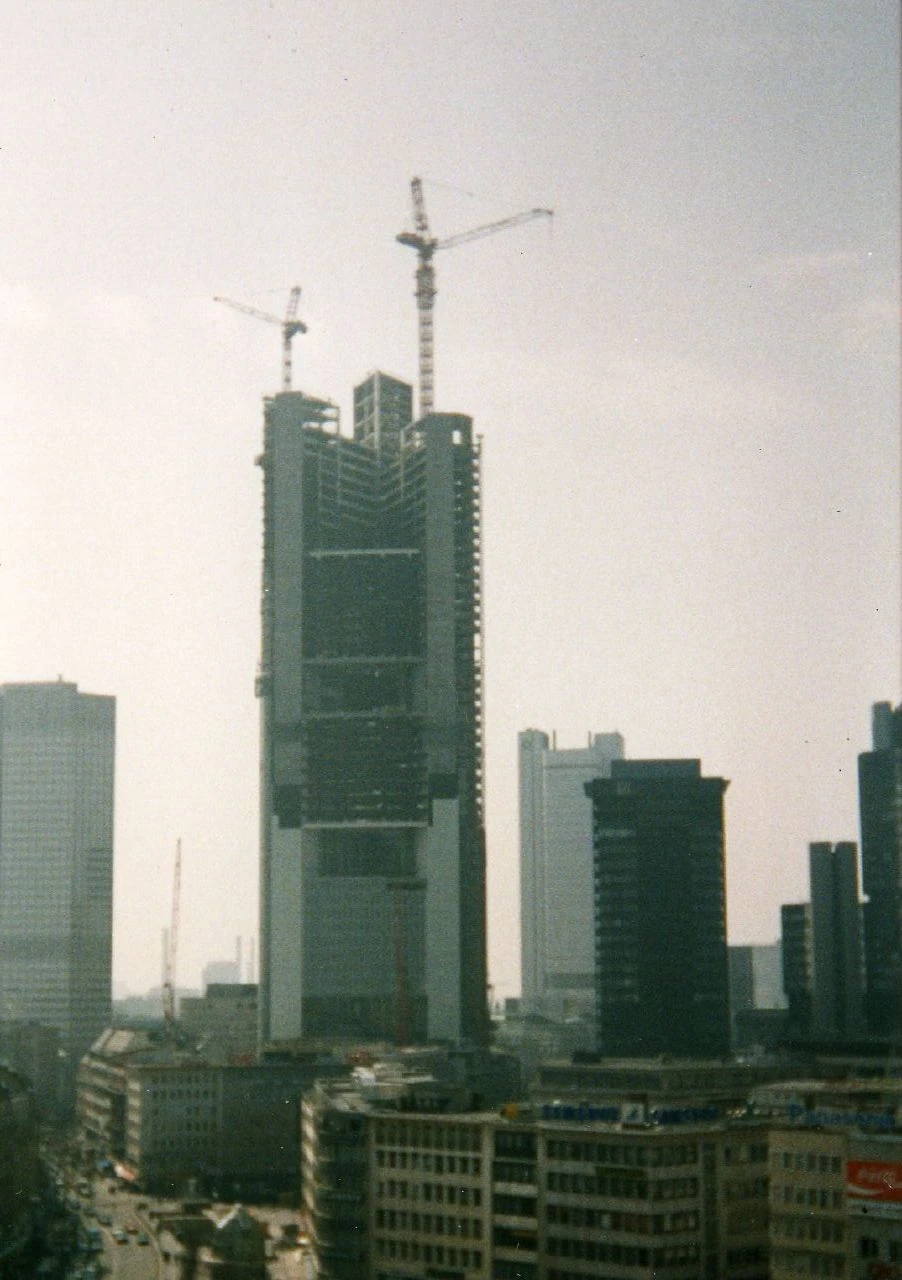

A documented construction sequence
The original Arup report describes off-site fabrication of major steel components, delivery and bolted site assembly. It also records temporary support and bracing during erection. My project-management reading is that prefabrication transfers substantial coordination upstream: geometry, tolerances, transport and installation need resolution before components arrive. Factory manufacture does not remove the need for site verification. [2]
Case study: Messeturm
The American Concrete Institute publishes a technical study of Messeturm’s piled-raft foundation. In the general piled-raft concept, both raft and piles participate in load transfer and settlement control. Their interaction depends on soil stiffness, foundation geometry and loading. I distinguish that concept from simply assuming that all the building’s load is carried by piles. It also should not be treated as identical to Commerzbank’s foundation. [3]

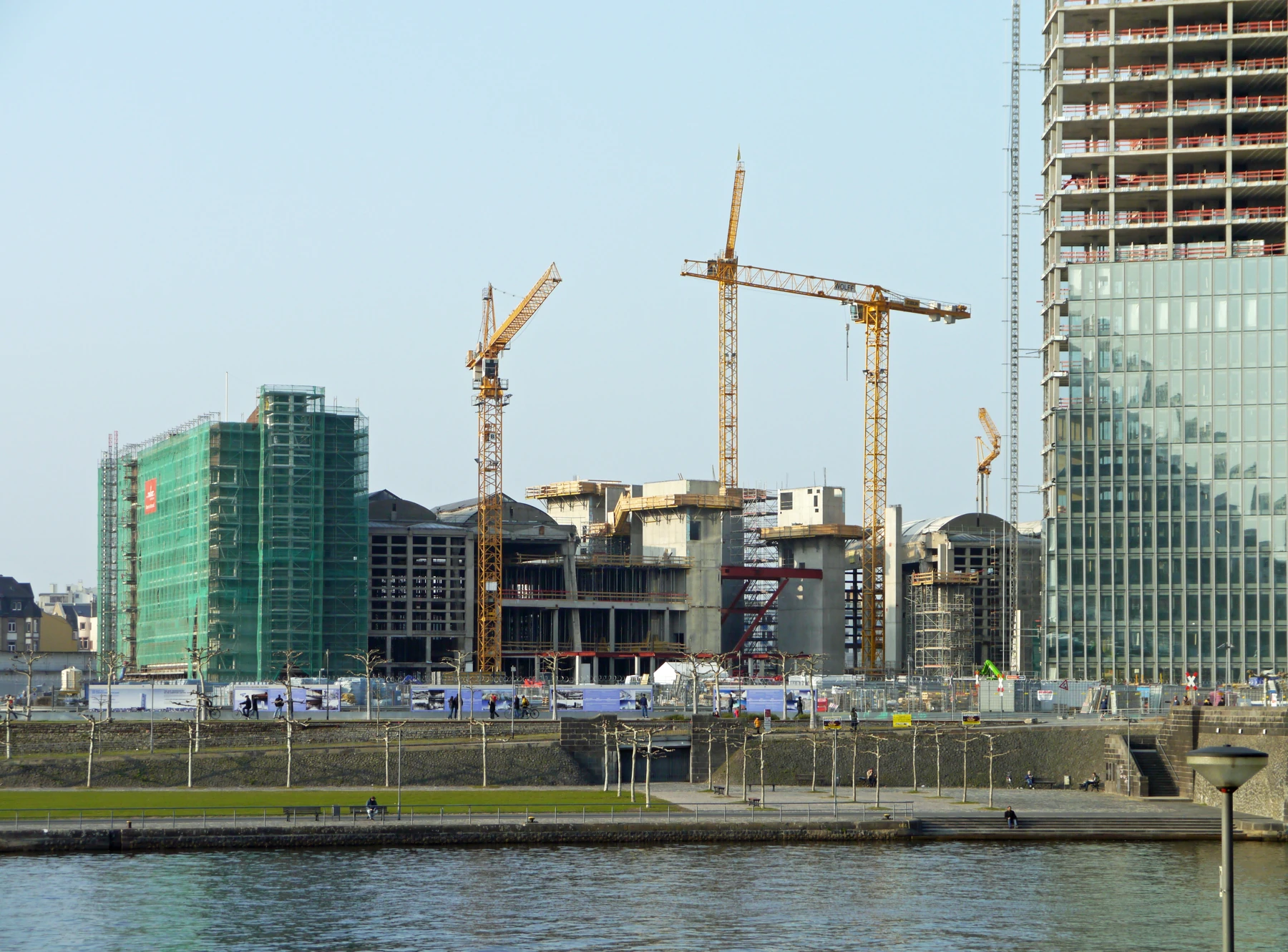

Case study: the European Central Bank premises
The ECB’s official project account documents a new complex incorporating the historic Grossmarkthalle. It provides a useful comparison with standalone new construction: retained fabric and new work have to function together. My engineering interest is in the coordination of movement, interfaces and operational requirements. Detailed connection behaviour would require the project drawings and assessment records. [4]
Durability and the lesson for my work
For steel and reinforced-concrete high-rises, long-term performance involves material protection, water management, joint condition and inspectability. These are general considerations rather than a condition report on the named towers. Frankfurt strengthens my focus on construction-stage stability and ground–structure interaction. A successful delivery must control behaviour during assembly as well as provide a reliable completed building.
